Configure mobile channel settings

The Mobile Channel Settings tab provides a view of the channel properties and, depending on permissions, the ability to modify settings for individual channels.

To configure mobile channel settings

  1. From the menu, select Channels.
  2. Select Add new Mobile Channel.

  3. On the Mobile Channel Settings tab, do the following:

    1. In the Channel Name box, enter the name of the channel as it appears within the admin system. This will appear in the Channel Manager and any content schedules that are created.

      2. Use a name that uniquely defines the geographical location of the screen, for example, “Community Center Entrance Walkway” to denote a screen that's located in the entrance walkway of the community center.

    2. In the Published Title box, enter a name for the image.

      This title will be seen by viewers when the title is configured to be exposed for viewing.

    3. (Optional) In the Published Description box, enter a description of the channel.

    4. Select Active from the Status list to expose the channel for viewing.

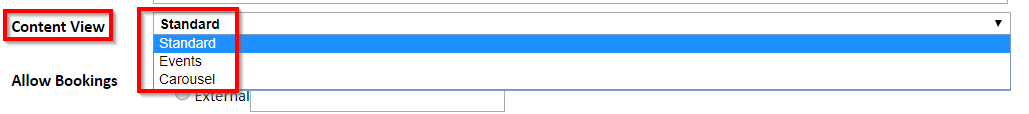

    5. Select a view from the Content View list.

      • Standard: content is displayed one image after another from the image stack on the screen.

      • Events: this is the designated view to best display event listings.

      • Carousel: content is displayed in a rotation as on a carousel.

    4. The remaining fields are either optional or you can leave them at the default setting.
